Strike 100
Large-Scale Rotary Evaporator
Strike 100은 산업용 플랜트를 위해 설계된 대용량 회전 농축기입니다. Borosilicate Glass(붕규산 유리)와 PTFE를 사용하여 안전한 물질 처리가 가능하며 모든 공정 요구를 충족하고 진공 또는 대기 조건에서 작동합니다.
옵션: ATEX 버전
Technical Specification 기술 데이터
Rotation Speed | 5 to 100 rpm |
Screen | 7" LCD Touch Screen |
Bath Temperature | 150℃ |
Lifting System | Yes |
Alarms and Controls | Heating bath overheating Bath Temperature exceeding set point Soft start rotation Rotation speed monitoring Safety status (rotation, lifting, heating = off) Evaporation flask protection |
Evaporating Flasks | 50L, 100L |
Collecting Flasks | 2 x 20L |
Dimensions (H x D x L) | 1830 x 890 x 2110 mm |
Features 제품 특징
Heating Bath
Sealing System
Pressure and Temperature

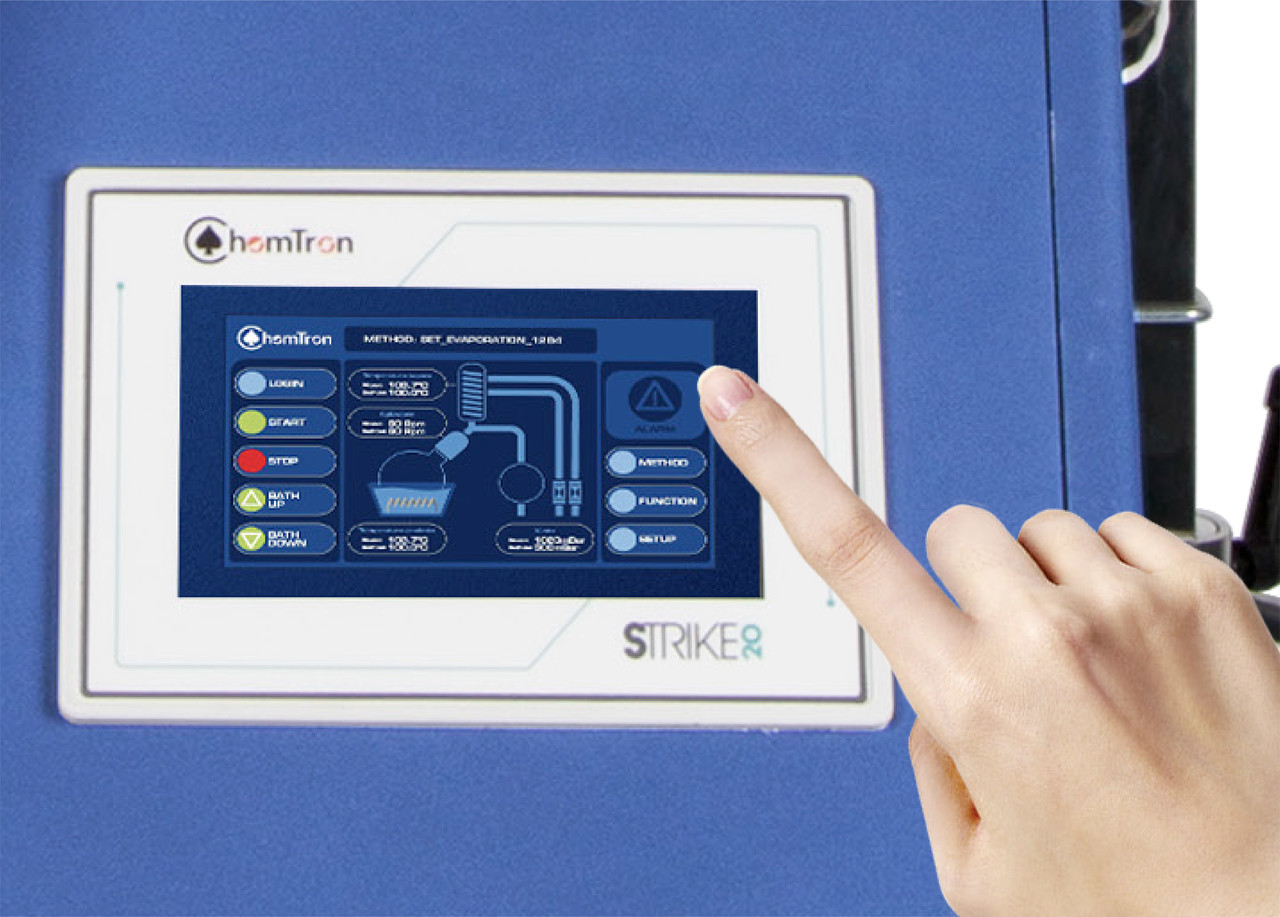

Display and Operation 디스플레이 및 조작
1. Vapor temperature setting
2. Rotation setting
3. Bath temperature setting
4. Vacuum setting
5. Vapor temperature setting
6. Calibration Interface - Setup
6. Calibration Interface - Bath temperature
6. Calibration Interface - Vacuum
6. Calibration Interface - Vapor temperature
Measurement, display and data recording of the following parameters :
Models 모델
Strike 100
Strike 100 ATEX
유럽방폭인증(ATEX) 장치
100L Version
100L Reflux Glassware 1.43m² | 2 x 20L |
100L Reflux Glassware 1.43m² | 1 x 20L |
100L Descending Glassware 1.43m² | 2 x 20L |
100L Descending Glassware 1.43m² | 1 x 10L |
50L Version
50L Reflux Glassware 0.6m² | 2 x 20L |
50L Reflux Glassware 0.6m² | 1 x 20L |
50L Descending Glassware 0.6m² | 2 x 20L |
50L Descending Glassware 0.6m² | 1 x 10L |
Accessories
Aluminium trolley for evaporating flask handling |
50L Evaporation vessel |
100L Evaporation vessel |
20L Plastic-coated collecting vessel |
