Mya 4 기타 액세서리

다양한 스타일과 용량의 Vessel


Vials and tubes from 2mL to 50mL

12mm, 16mm, 17mm, 24mm, 1in & 28mm diameter

Carousel 12 Plus Reaction tubes

Reflux 또는 Manifold 헤드에 장착 가능한 200mL 튜브
오버헤드 교반 가능(최소 5mL)

Round Bottom Flasks from Carousel 6 Plus

25mL, 50mL, 10mL, 250mL

One or two side arm options

Standard and wide neck options
Baffled vessel options

Process reaction vessels

With straight sides and dished base to mimic jacketed reactors

50 ml, 100 ml, 150 ml, 250 ml and 400 ml

Side arm option
Baffled vessel options

Reflux tubes

To be used with the Reflux head – act as condensers

Wide neck reflux tubes option for

wide neck round bottom flasks and process vessels


Reflux & Manifold Heads

Water-cooled

Distribute gas for inerting

Manifold head : •  Distributes water for individual condensers

      • With non-return shut-off valves

Reflux head : • Cools the outside of reflux tubes

                              • Efficient refluxing in a simple set-up

PTFE lid for Blaze Metrics probe

For use with 400 ml Mya process vessel

Constructed from glass filled PTFE

6 neck lid, supplied with a dedicated port plug and

short blanking plug

Lid can be used in standard operation when not using

the PAT probe


Glass multi-neck lids

To be used with the Manifold head
3- or 5-neck lids
For process vessels and wide neck round bottom flasks

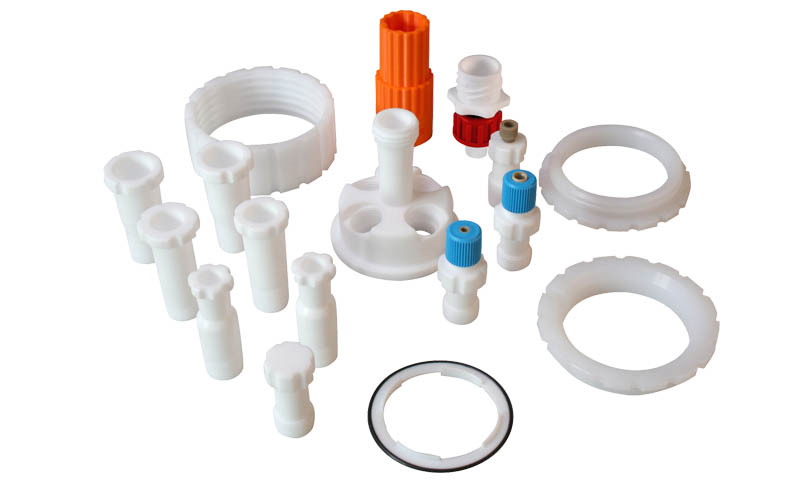

PTFE multi-neck lids

For improved durability and safety
Stronger to support heavier probes and other accessories
Custom PTFE lids available on request
3 types of PTFE lids

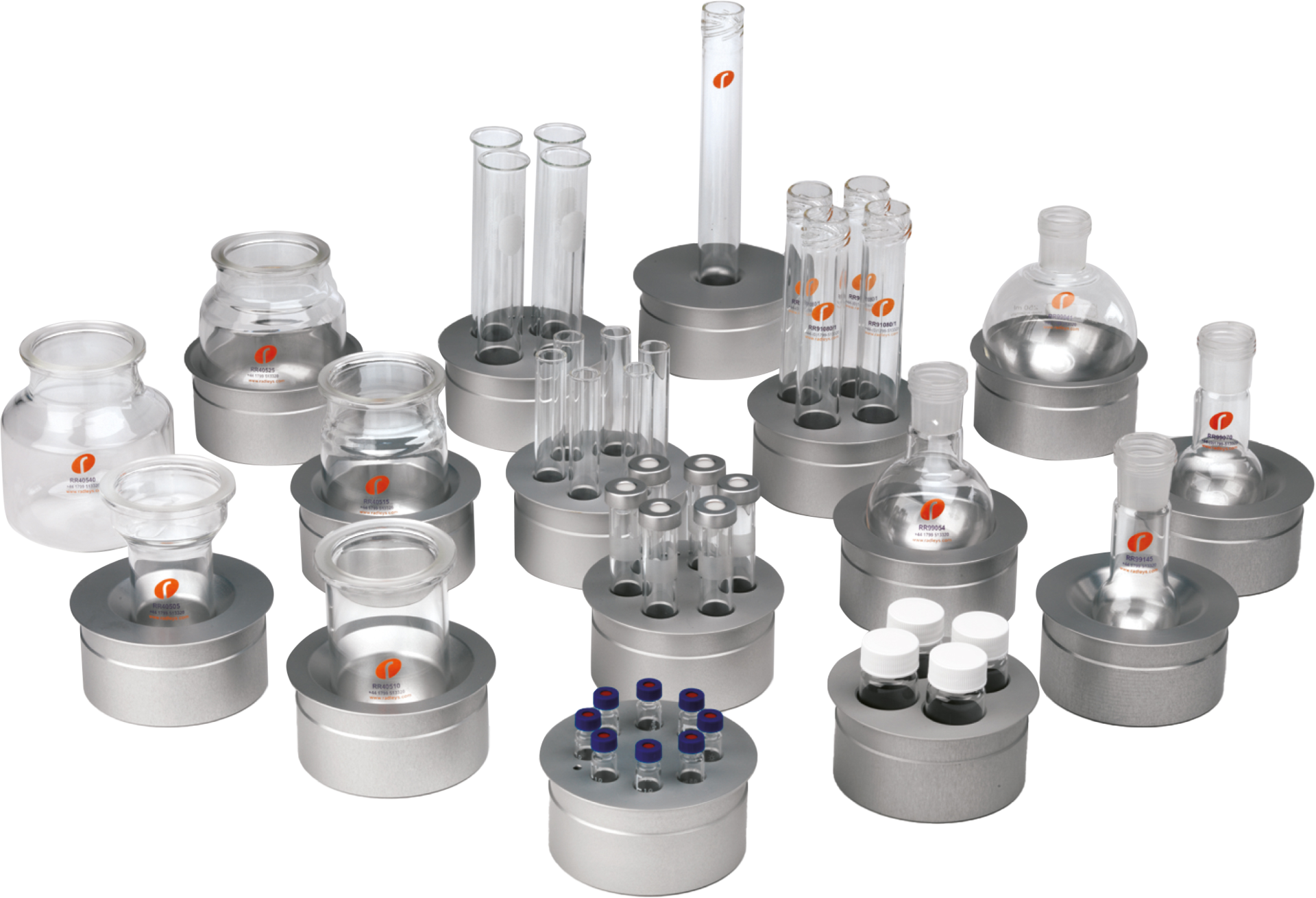

Range of inserts

Made of anodised aluminum for good heat transfer
Dedicated insert for each vessel size(no layering of inserts)
Custom inserts for vials/tubes on request

Accessory glassware

Condenser
Dropping funnels
Solid addition funnels
Stoppers

Range of stirrer bars and stirrer shafts


Magnetic & overhead stirring

Integrated magnetic stirring – from 100 to 1000 rpm

Optional overhead stirring with Mya Compact Stirrer

  • Powerful, high torque motor
  • Stirs from 100 to 1000 rpm
  • Tool-free attachment
Control the stirring speed of each position independently

PTFE Magnetic Stirring Bars

Wide range of stirrer bars available.

PTFE Stirrer impellers

Turbine, anchor, U-shape, centrifugal and flat paddles available


Custom stirrer shafts available on request

Other accessories


Silicone Top Cover

Provides an additional barrier to chemicals

Allows existing users a quick and low-cost option to rejuvenate their worn top cover

Compact Stirrer & Probe Holder

Convenient holder for compact stirrer motors and temperature probes when not in use

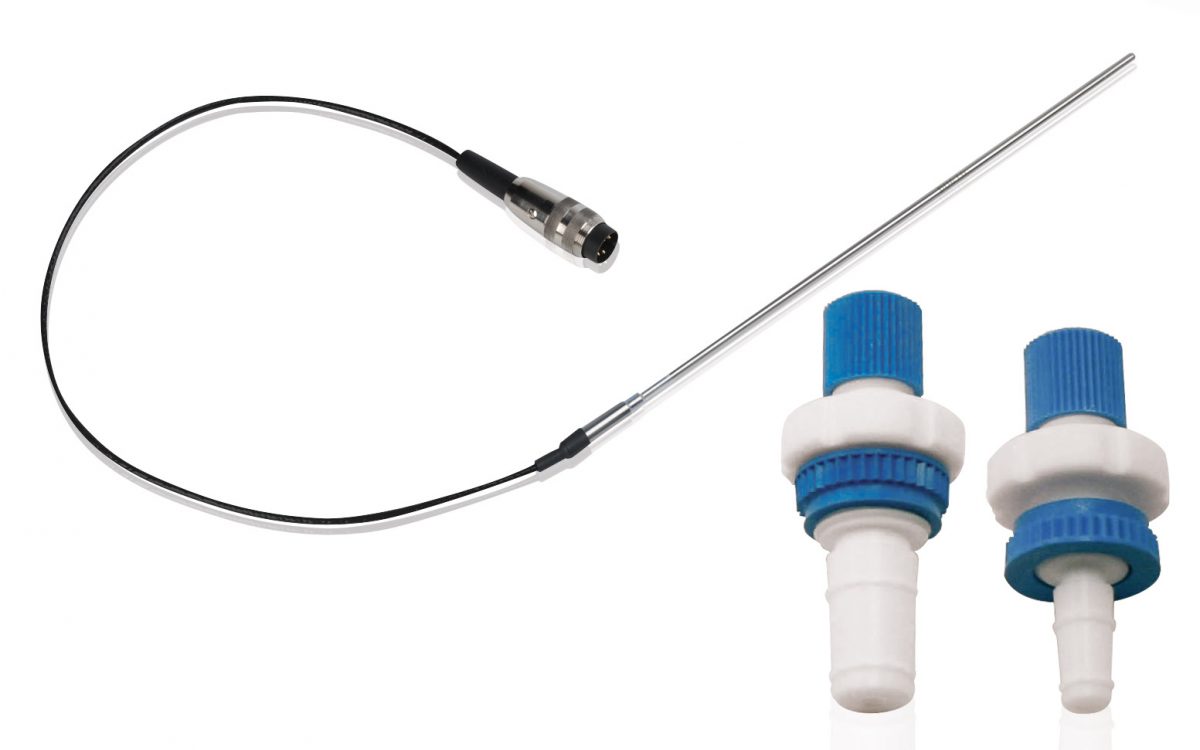

PTFE Temperature probes & adapters

Pt100 PTFE temperature probes

Pt100 stainless steel temperature probes

PTFE temperature probe adapters

Universal vessel holder

Accepts all round bottom flasks, wide-neck flasks, process reaction vessels and Carousel reaction tubes.
