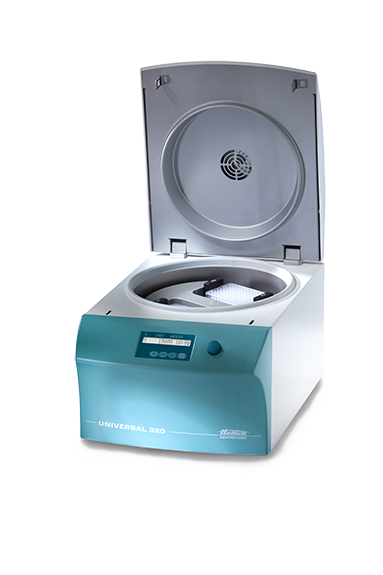

Benchtop Centrifuge
UNIVERSAL 320 / 320R
Multitalented centrifuges
■ Features
- 빠른 실험 속도 (Running Time)가 특징이며, 프로그램 세팅을 최대 10개까지 저장할 수 있습니다.
- *RUN-UP (0에서 최대 RPM까지 올라가는 속도), RUN-DOWN (최대 RPM에서 0까지 다시 내려가는 속도
- 고성능의 냉장 (Fast cool function)이 지원되는 모델로 -20°C에서 +40°C까지 설정 (UNIVERSAL 320R) 할 수 있습니다.
Model | UNIVERSAL 320 | UNIVERSAL 320R |
Max. Capacity | 4 x 200 ml or 6 x 94 ml |
|
Max. RCF | 21,382 |
|
MAX. RPM | 15,000 min-1 |
|
Dimensions (HxWxD) | 346 x 401 x 529 mm | 346 x 407 x 698 mm |
Weight | Approx. 31kg | Approx. 52kg |
■ Rotors
Rotors |  |
|  |
|
|
Angle | 90° | 90° | 90° | 90° | 90° |
Max. RPM | 4,500 min-1 | 5,000 min-1 | 4,000 min-1 | 4,500 min-1 | 4,000 min-1 |
Max. Capacity | 4 x 200 ml | 4 x 100 ml | 4 x 100 ml | 4 x 100 ml | 8 x 15 ml |
Type | Swing-out | Swing-out | Swing-out | Swing-out | Swing-out |
Rotors |
|
|
|
|
|
Angle | 90° | 45° | 90° | 90° | 90° |
Max. RPM | 5,000 min-1 | 5,000 min-1 | 4,000 min-1 | 4,000 min-1 | 13,000 min-1 |
Max. Capacity | 12 x 15 ml | 8 x 50 ml | 6 x 50 ml | 10 plates | 24 x 2 ml |
Type | Swing-out | Swing-out | Swing-out | Swing-out | Swing-out |
Rotors |
|
|
|
|
Angle | 50° | 45° | 45° | 45° |
Max. RPM | 16,000 min-1 | 14,150 min-1 | 13,000 min-1 | 14,150 min-1 |
Max. Capacity | 24 x 2 ml | 30 x 2 ml | 64 x 0.2 ml | 18 x 5 ml |
Type | Angle | Angle | Angle | Angle |
Rotors |
|
|
|
|
Angle | 35° | 35° | 45° | 45° |
Max. RPM | 9,000 min-1 | 6,000 min-1 | 12,000 min-1 | 4,500 min-1 |
Max. Capacity | 6 x 94 ml | 12 x 15 ml | 12 x 15 ml | 8 x 50 ml |
Type | Angle | Angle | Angle | Angle |
