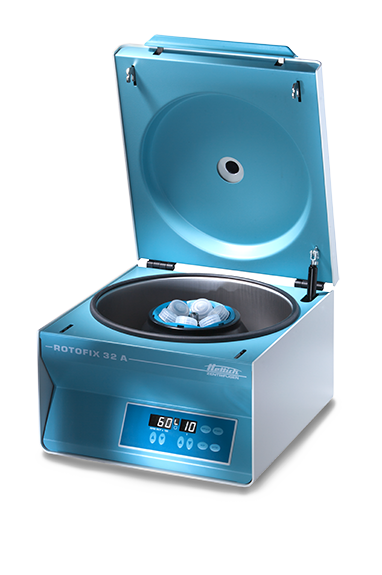

Benchtop Centrifuge
ROTOFIX 32A
Versatile benchtop centrifuge
■ Features
- 다양한 액세서리를 장착할 수 있으며, Chrome Bath Testing 튜브 사용이 가능합니다.
- 임상화학 및 세포용 원심분리기로 많이 사용하는 다용도 원심분리기 입니다.
Model | ROTOFIX 32A |
Max. Capacity | 4 x 100 ml |
Max. RCF | 4 x 100 ml |
Max. FPM | 6,000min-1 |
Dimensions (HxWxD) | 257 x 366 x 430 mm |
Weight | Approx. 23kg |
Refrigeration | Air cooling |
■ Rotors
Rotors |
|
|
|
|
|
Angle | 90° | 90° | 90° | 45° | 90° | 55°/60°/80° |
Max. RPM | 4,000 min-1 | 4,000 min-1 | 4,000 min-1 | 4,000 min-1 | 4,000 min-1 | 4,000 min-1 |
Max. Capacity | 4 x 100 ml | 4 x 100 ml | 6 x 50 ml | 8 x 50 ml | 8 x 15 ml | 12 x 15 ml |
Type | Swing-out | Swing-out | Swing-out | Swing-out | Swing-out | Swing-out |
Rotor |
|
|  |
Angle | 45° | 35° | 35° |
Max. RPM | 4,000 min-1 | 6,000 min-1 | 6,000 min-1 |
Max. Capacity | 8 x 50 ml | 6 x 94 ml | 12 x 15 ml |
Type | Angle | Angle | Angle |
